NCN3035B Automatic Weigh-Price Bottom Labelling Machine
Technical Specifications
● Machine Dimensions: 3000×450×800mm (±100)
● Conveyor System: Includes infeed conveyor, weighing conveyor, bottom labelling conveyor, label exit conveyor, and inspection conveyor
● Applicable Product Size: Max length 700mm, max width 250mm
● Conveyor Direction: Left to right (customizable)
Weighing System
● Weighing Range: 3kg (e=1g)
● Weighing Accuracy: ±2g
● Display: 12-inch color touchscreen
Printing & Labelling System
● Printing Method: Thermal / Thermal transfer
● Printing Resolution: 305dpi
● Max Printing Width: 104mm
● Printing Speed: Up to 300mm/s
● Labelling Method: Wipe-on bottom labelling
● Labelling Speed: Up to 35 packs/min
● Label Size: 30×30mm to 100×100mm
● Label Roll Specifications: Max outer diameter 250mm, inner diameter 38mm / 76mm
● Supported Barcode Formats: EAN, UPC, Code 128, QR Code, GS1-128, and more
Data Interfaces & Environmental Adaptability
● Data Interfaces: Supports Ethernet, USB, LAN, RS-232, and MES/ERP system integration
● Operating Temperature: 0°C to 40°C (standby mode: -10°C)
● Humidity Range: 20% to 90% (non-condensing)
Core Components
● Print Engine: SATO S84-EX
● Weighing Sensor: HBM PW12C
● PLC: Mitsubishi FX3U-32MT
● Photoelectric Sensor: KEYENCE PG-42N
● Frequency Converter: Schneider ATV312H037N4
● Power Motor: Oriental Motor 5IK60A-GC (Japan)
● Machine Body: 304 stainless steel, 6061-T6 anodized aluminum
● Pneumatic Components: FESTO solenoid valve
Applicable Industries
The NCN3035Bis ideal for food processing & packaging (meat, seafood, fruits & vegetables, bakery, etc.), retail & supermarkets (fresh and pre-packaged foods), logistics & sorting (courier, warehousing), and manufacturing (parts, cosmetics, pharmaceuticals). It provides an efficient and accurate bottom labelling solution for businesses.
Choose NCN3035B for more precise, efficient, and intelligent bottom labelling!

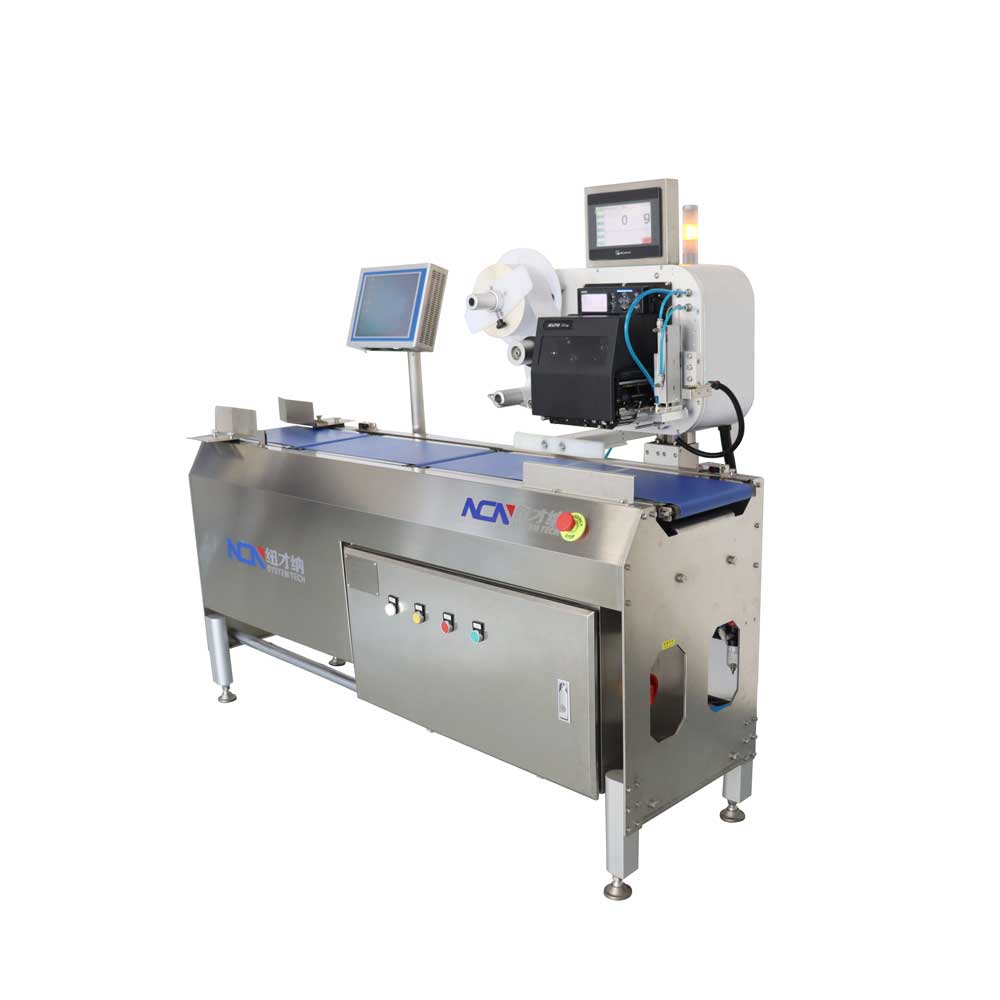

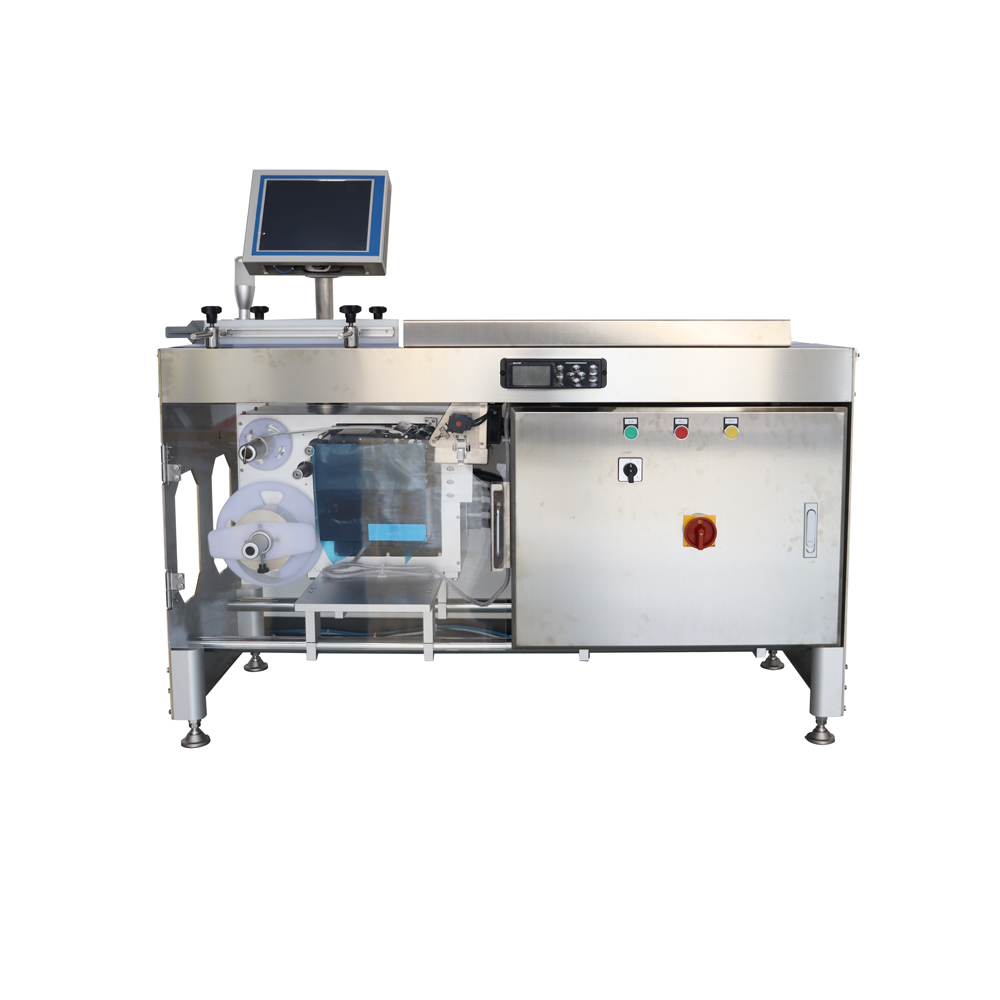

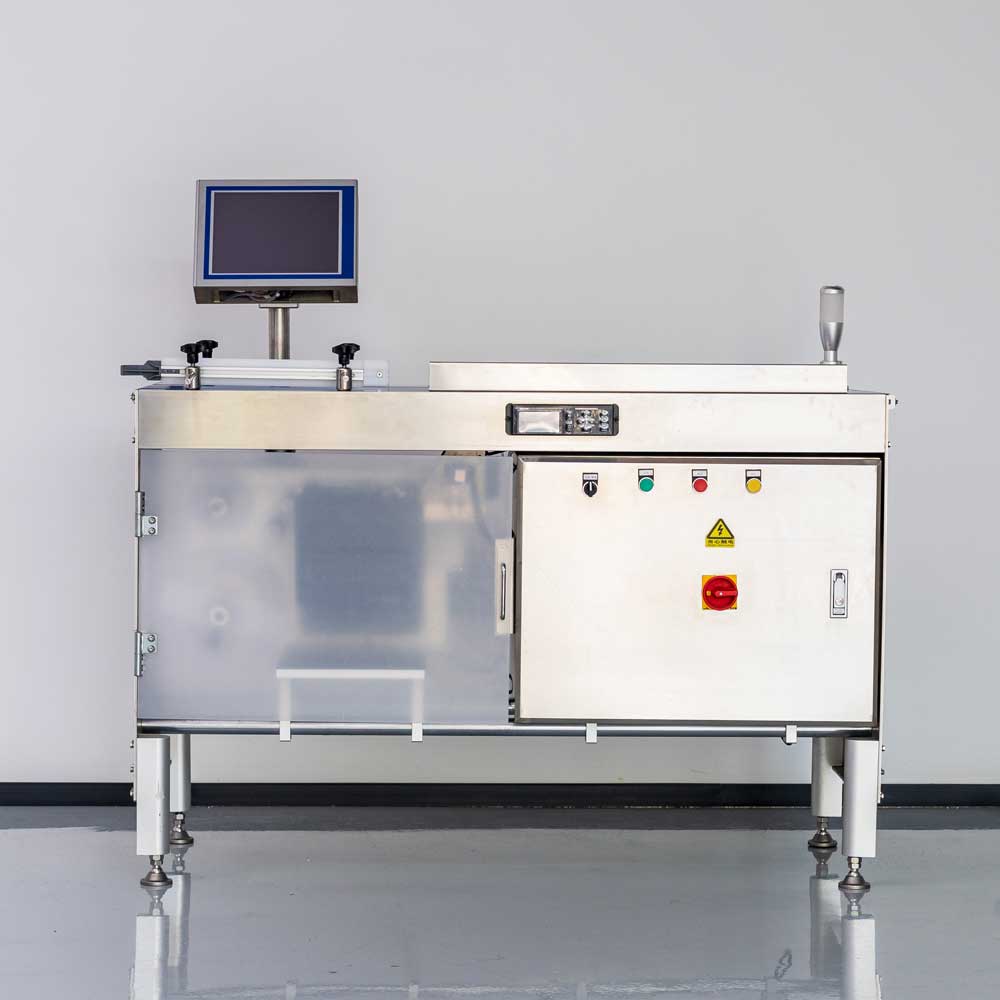

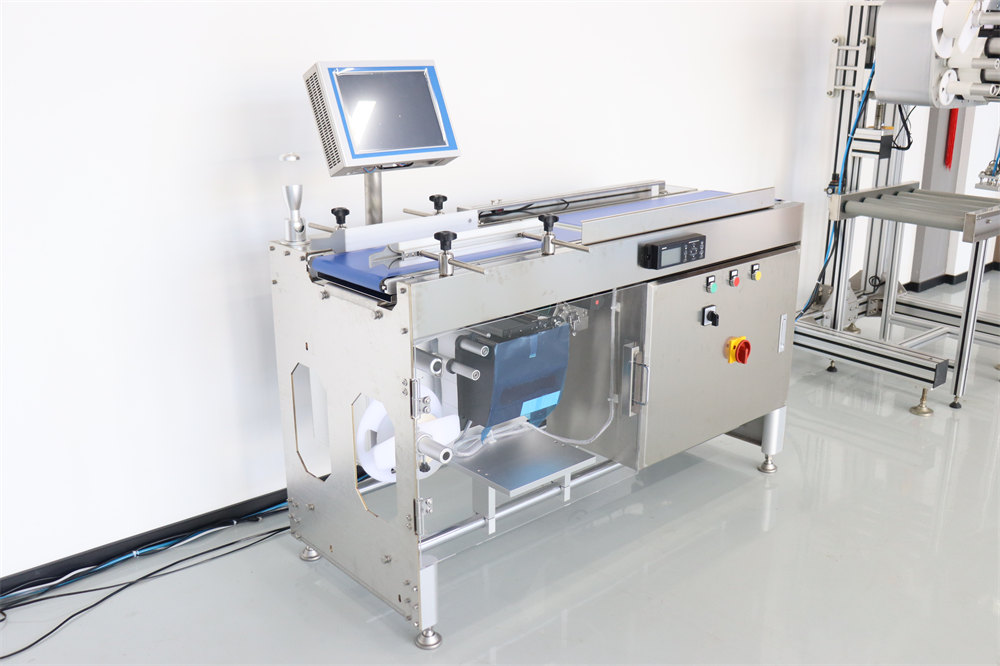

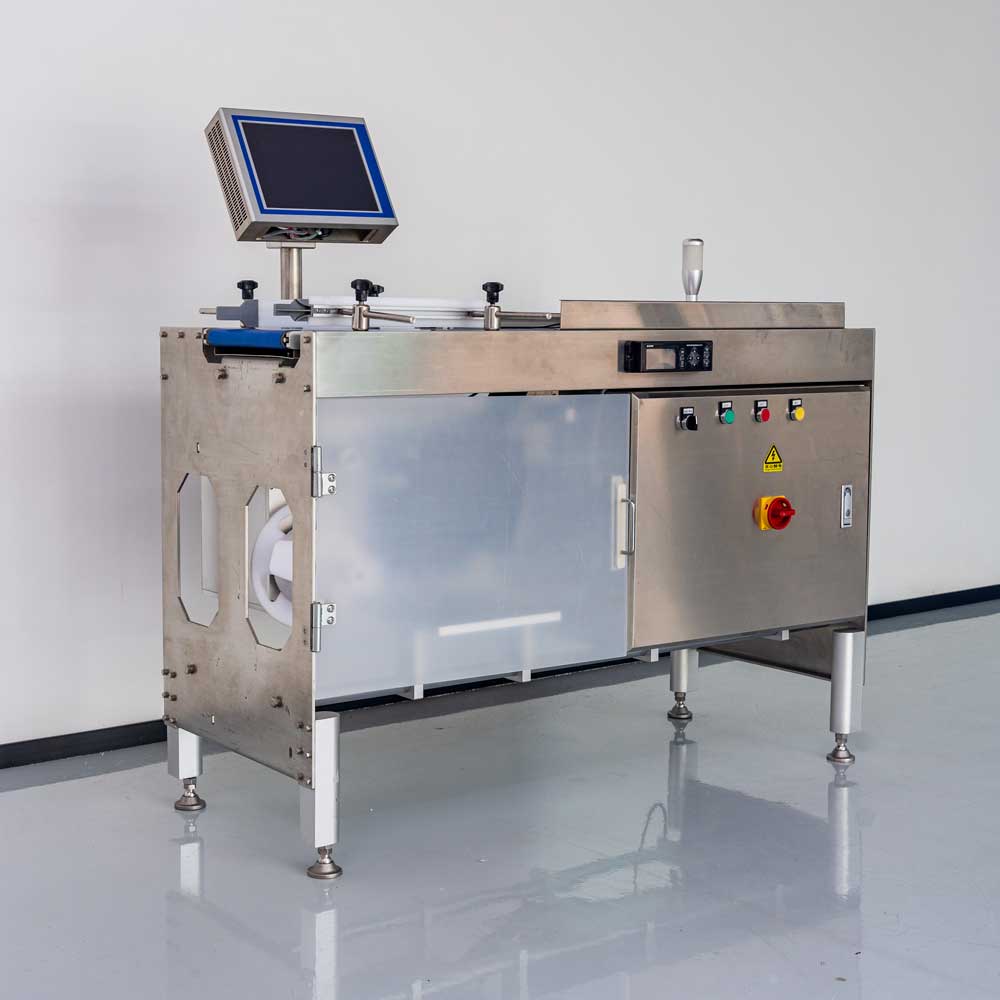

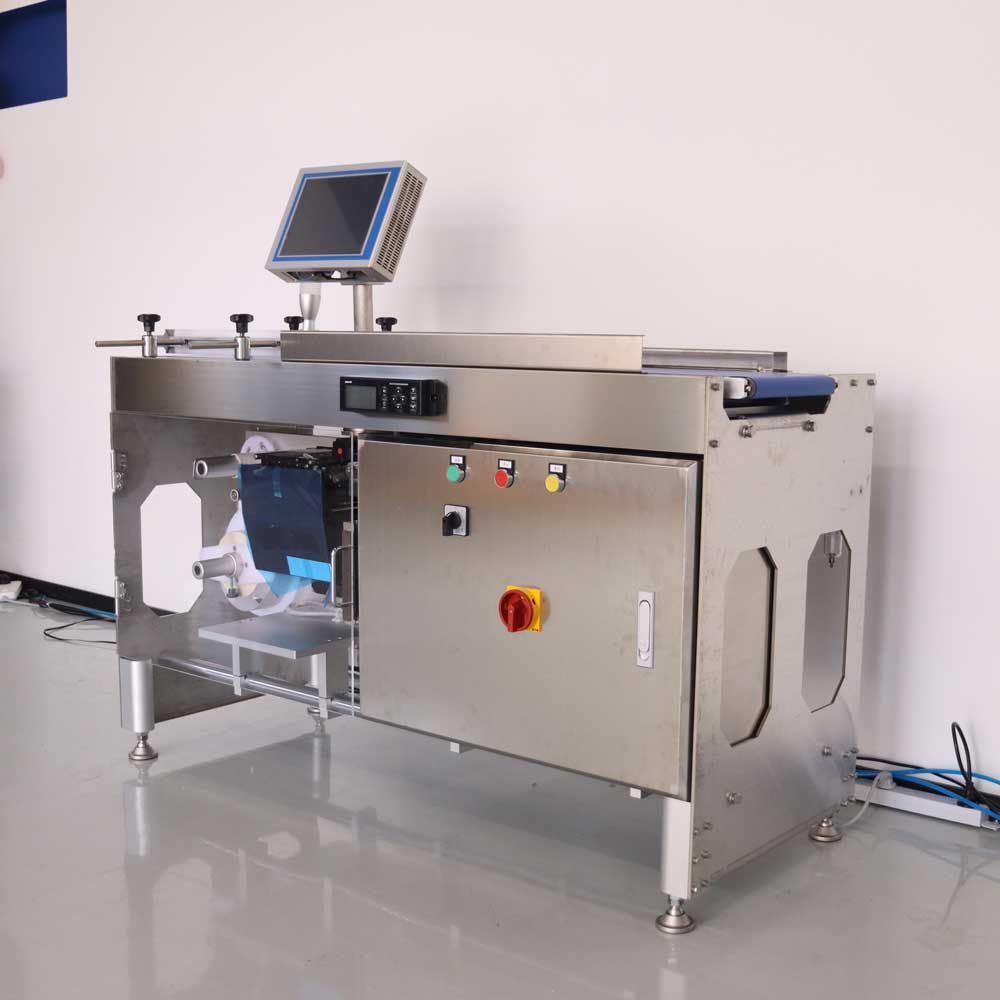

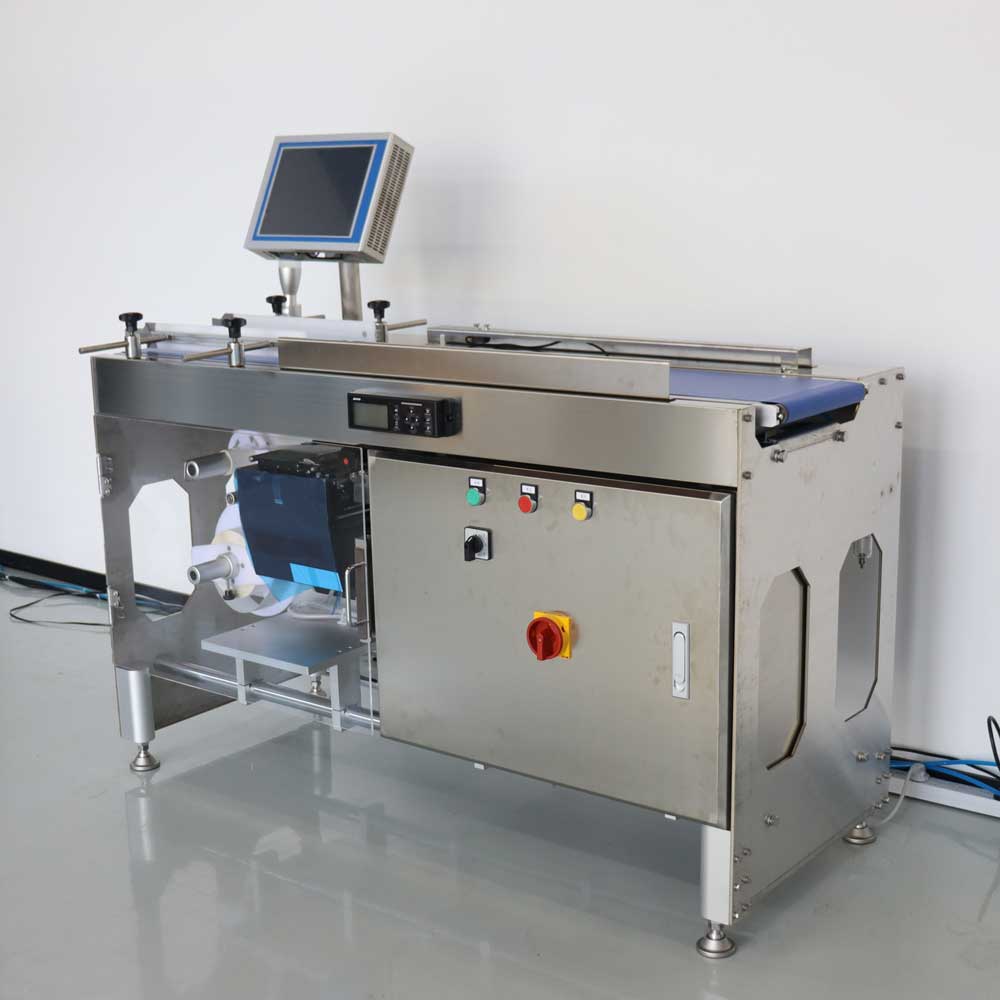

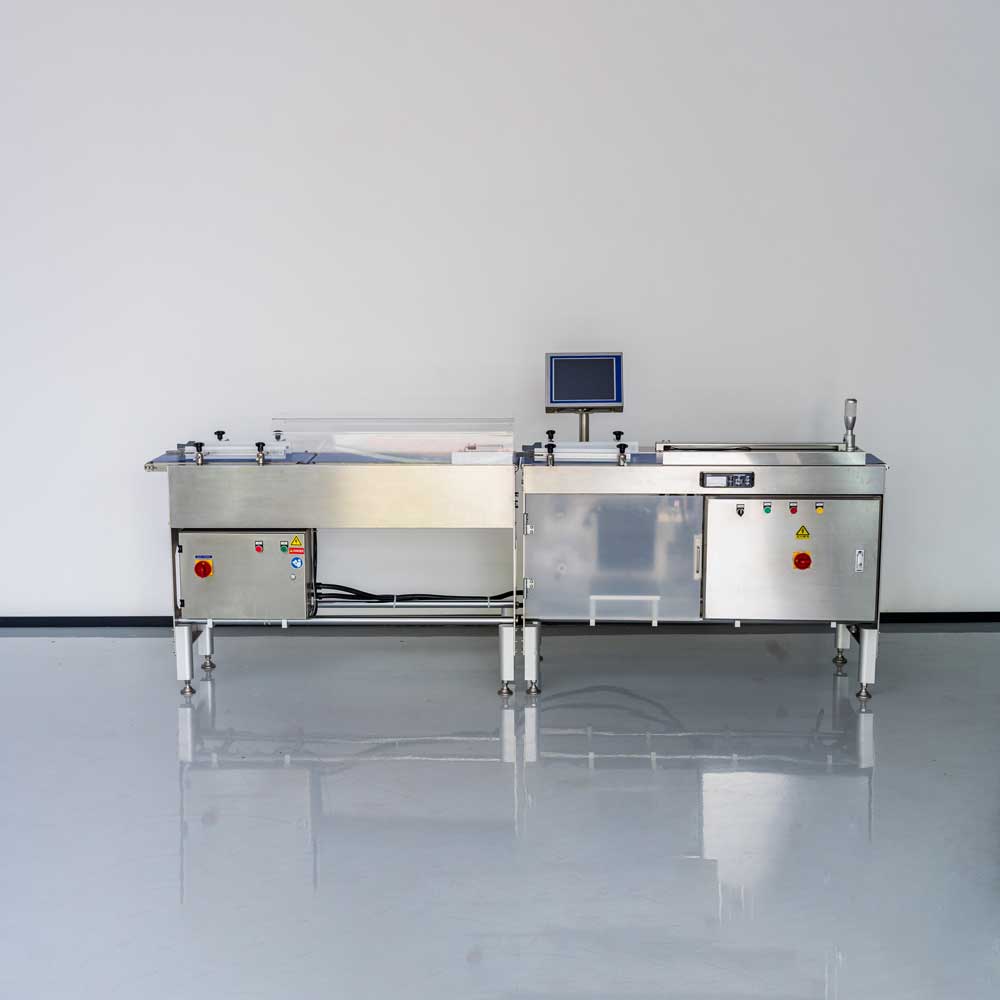

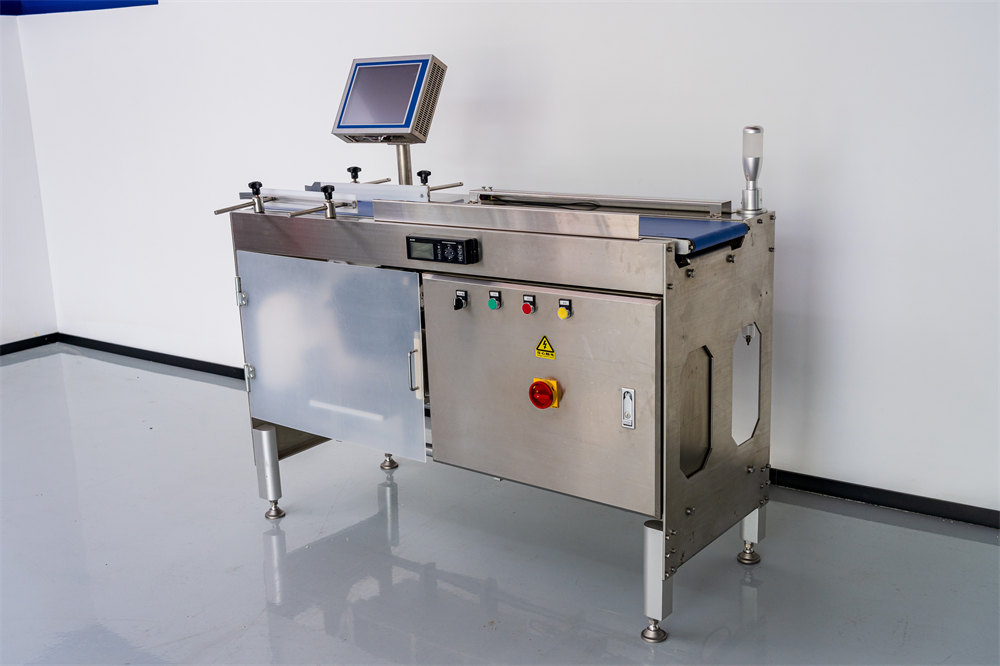

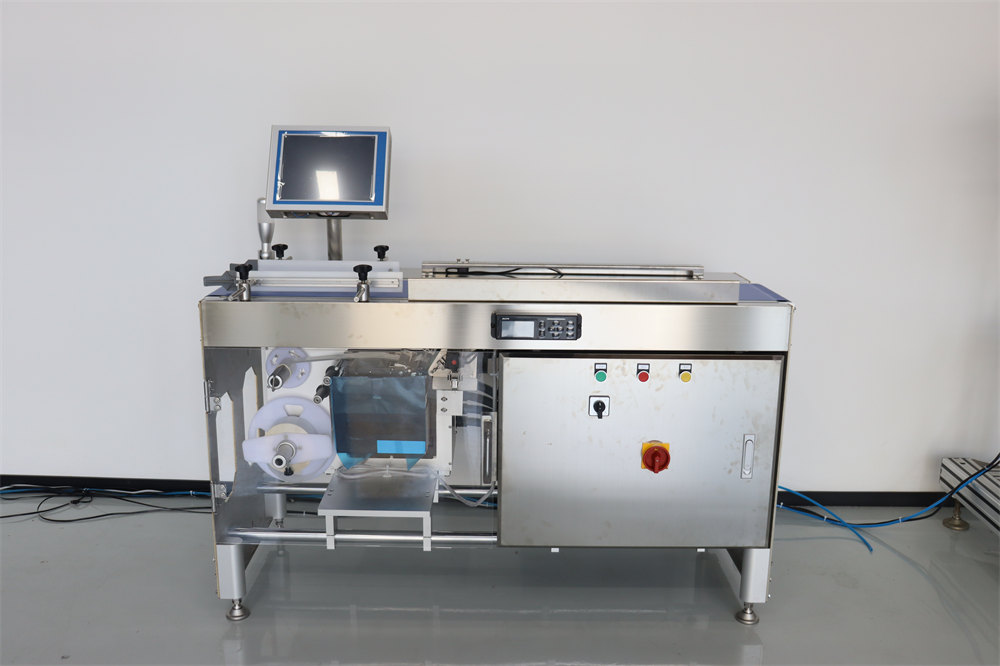

Product Display
